Shower Mold Growth - Identification & Solutions
Mold issues in the shower surround can be broken into two broad categories – surface mold growth and mold behind the surround. Surface mold growth is unsightly and can be difficult to remove. However, it’s the moisture hidden in the framing behind the shower that can lead to structural damage and expensive repairs.
Black mold growth on the surface of a shower surround
Depending on the type of materials used, mold growth can occur within the stone / tile itself. The photos below show heavy mold growth in travertine tile, which is very porous. Unless it is properly sealed, the moisture can penetrate the stone, creating conditions conducive to bathroom mold growth.
Mold growth on caulking
Shower caulking must endure heavy moisture conditions on a daily basis. It’s not surprising this is one of the most common areas of mold growth within a home. This growth often occurs within the caulking itself, which is why it is difficult to clean. Replacing the caulking is usually necessary. The best long term solution? Use the highest quality caulking you can find. The best products are formulated to withstand years of moisture saturation without developing mold growth.
Mold growth on grout
Mold growth can occur within the grout used in the spaces between the tiles. Like mold growth in the caulking, this is very difficult to clean. In its natural state, grout is highly porous and will absorb enough moisture to propagate mold growth. Preventing this growth requires a high quality grout sealant (and periodic maintenance). In the image below the grout has failed entirely in sections, allowing moisture to penetrate behind the tile.
Mold damage behind the shower surround
Surface mold growth is annoying, but rarely more than an aesthetic nuisance. However, if enough moisture has penetrated the wall cavity behind the shower surround, structural damage can occur. Three causes are possible.
- Leaky cold & hot water supply lines.
- Cracked tile & grout.
- Vapor drive
Failed shower tile
A failure of the shower surround will affect the backer board first. Often the first indication of the problem is a loose tile. This occurs when the backer board swells or loses it structural integrity, causing the glue/mastic to fail.
The moisture doesn’t always penetrate the underlying framing. In the right hand photo the moisture meter shows elevated water content in the backer board. In the left hand photo, the underlying stud is dry and structurally sound.
Diagnosing hidden mold and rot behind shower surrounds
Assessing a shower for hidden mold is difficult. Moisture meters, the most important tool in a mold inspectors kit, is of limited value on shower surrounds. Tile and stone often provide false positives due to the conductivity of the material. Fortunately, well trained mold inspectors have other avenues to identify moisture issues.
- Investigate the crawlspace or room below. If the leak is significant, often the materials below the shower will show signs of water damage.
- Investigate the adjacent wall. If the shower shares a common wall with a bedroom or closet, an inspector can use a moisture meter to check for elevated water content. Additionally, a small hole can be cut in the sheetrock to provide a visual inspection. A boroscope can then be used to look within the wall cavity. This type of inspection is much less invasive than removing tile and can often be performed without drywall repair.
Below is a before and after shot of a tile shower. Note the extensive damage to the joists. Very little was keeping this shower from falling into the crawlspace below. The damage was fundamentally due to insufficient waterproofing behind the tile. The grout and caulking failed (as it eventually does in all cases), allowing water to pass into the backer board. In a correctly designed shower, this backer board is coated with a thick waterproof coating. This is not merely a backup in case the grout fails. It should be thought of as the primary water barrier. In fact, skilled tile contractors will fill the shower pan with water prior to installing the tile to prove the efficacy of the waterproofing.

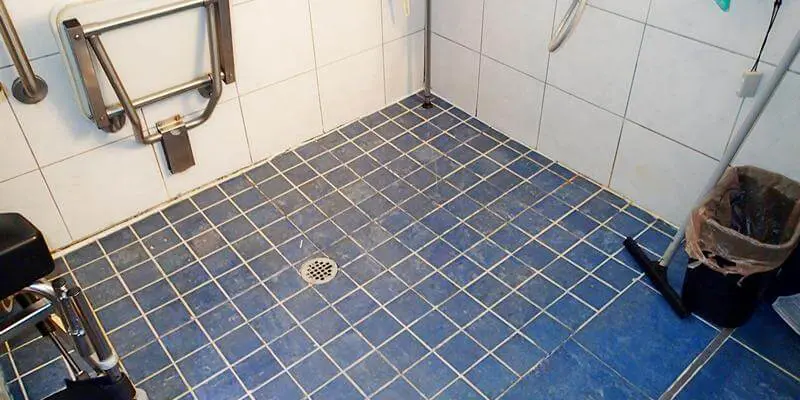

Shower during original inspection
Mold & rot visible after removing shower tile and pan.
Clean up and remediation
Unless the problem is very small, mold problems in the shower wall should be addressed by a certified mold professional. The following are steps an experienced mold contractor will follow:
- Setup containment. (HEPA air scrubber, negative pressure, etc.)
- Remove shower surround.
- Remove tile backer board if present.
- If necessary, remove tub or shower pan.
- Clean underlying framing and flooring.
- If dry rot is present, remove and replace damaged framing.
- Address plumbing problem.
Is shower mold a health problem?
If the mold growth is occurring inside the wall cavity (behind the shower surround), health issues are unlikely. Because the shower surround acts as an air barrier, the mold spores cannot migrate to the indoor environment. However, if the shower mold is removed without professional containment in place, the indoor air quality will undoubtedly become compromised.
What type of surrounds are most conducive to shower mold?
Shower surrounds vary wildly in the tendency toward failure. Unfortunately, the designs and materials often considered most aesthetically desirable are also the most likely to fail.
- Stone tile. Stone surrounds, while beautiful, carry all the problems associated with grout and caulking and have the additional challenge of mold growth within the stone itself.
- Porcelain Tile. Porcelain tile is much less porous and will rarely propagate mold growth itself. The main challenges are the potential failure of the grout and caulking.
- 3-piece fiberglass surround. Failure points are limited to the caulking at the seams.
- 1 piece fiberglass surround. Virtually bulletproof, a 1-piece surround provides very few failure points. Moisture can leak through the door, but this is usually an installation failure.
Project Report > Shower Door Failure
- The home had been subject to a long-term leak around the shower door in the master bathroom.
- The new tenants are concerned about mold growth and a possible effect on indoor air quality.
- The master bathroom is partially carpeted (this condition is conducive to mold and mildew growth due to normal high-humidity conditions in the bathroom)
- Increased moisture content and stained grout noted in several square feet of tile adjacent to the previous leak, both on flooring and shower curb.
- Carpet near previous leak is stained and discolored, suggesting underlying mold growth.
- Dehumidifier and air mover installed at the time of inspection, but attempts to dry the subflooring with tile in place are unlikely to succeed.
- Small section of sheetrock in closet had been removed along common wall to shower enclosure, but not evidence of mold growth or water damage could be observed in the cavity.
- The exhaust fan in this area is likely inadequate.
- RH: 55.7% Temp: 64.2F CO2 = 392ppm CO = 0ppm
- Minor deformation of sheetrock at nail heads was observed, this is likely secondary to the water issues noted in the master bathroom.
*Heads up – I earn a small commission on sales through Amazon links. This helps cover the expense of running the website (and answering your questions!)
Got a question? Ask it here and we'll post the answer below
My shower door has been leaking under the frame for months. I have a fiber glass shower pan. Can mold be under the shower door frame?
Yes, it is quite possible for mold growth to occur beneath a shower door frame (or shower pan). However, this should be primarily viewed as a structural issue rather than a health concern. The leak will eventually lead to rot and compromise the structural integrity of the subfloor.
The mold growth itself is contained by the shower door frame and therefore not affecting the indoor air quality. Keep in mind that when you replace the shower door or pan you’ll expose the mold growth. Setting up containment can prevent the spread of mold spores.
I am putting in a new shower pan. should I also tear out the tile in the upper part of the shower to see if there is mold?
Unless you see evidence of water intrusion such as buckled tiles, warped walls, failing grout, I would not remove the tile. Tile is very resilient and can handle minor water intrusion. Assuming all the tiles are intact, I would proceed with just replacing the shower pan.
These stains are in the grout of my shower and i can’t scrub them away. Is this mold?
Yes, this is likely mold growth. However, the amount is not sufficient to impact the indoor air quality or your health. The porous nature of grout, stone and caulking allow water to penetrate the material and in turn, lead to mold growth. There are a couple of techniques you can implement to help prevent this in the future. 1.) Apply a waterproofing sealant. Your local tile contractor should be able to offer suggestions or perform the application. 2.) Run your bath fan for at least 1 hour after each usage. Your goal is to ensure the materials are completely dry. This can be tricky if the shower is used multiple times per day.
